THE KOALA

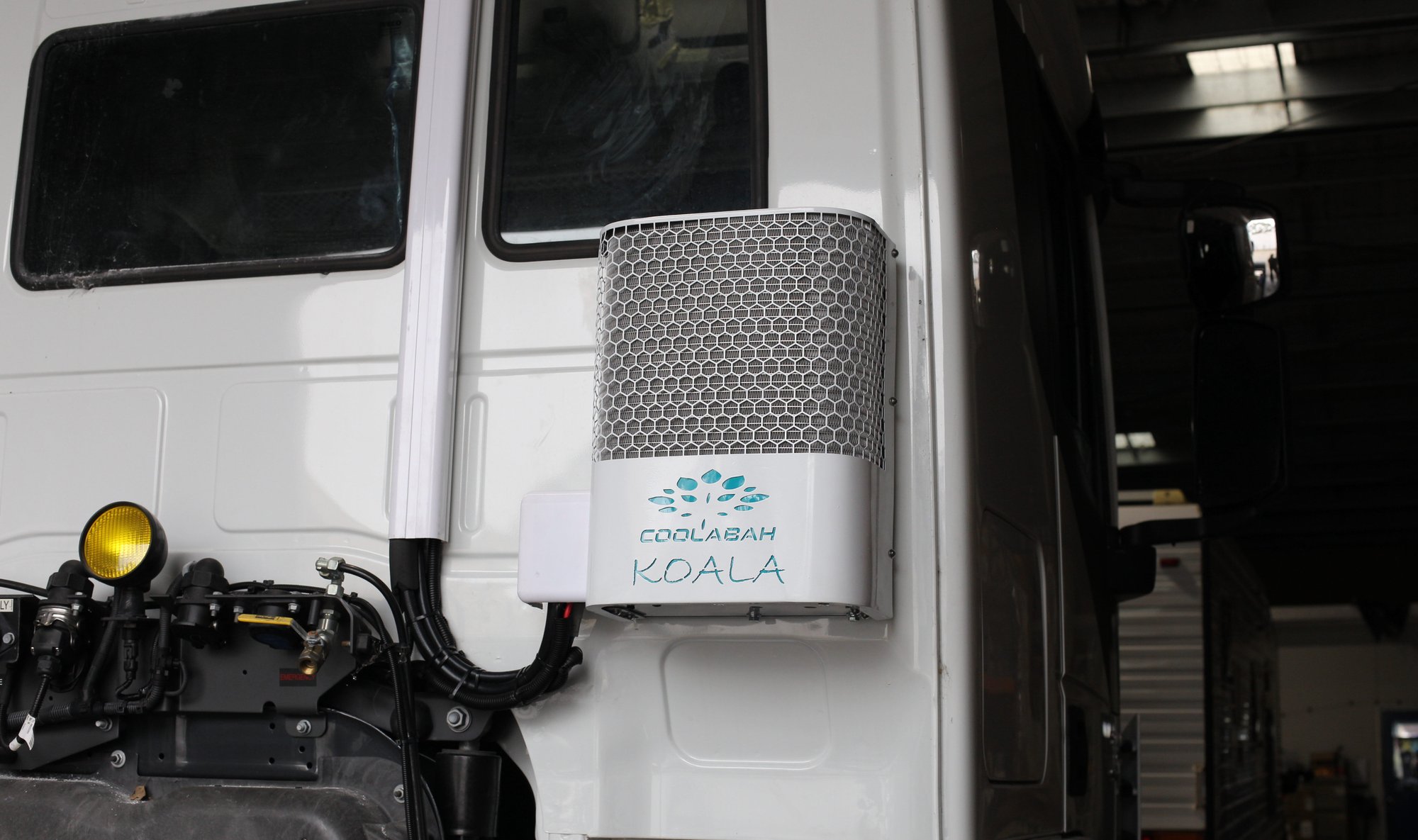

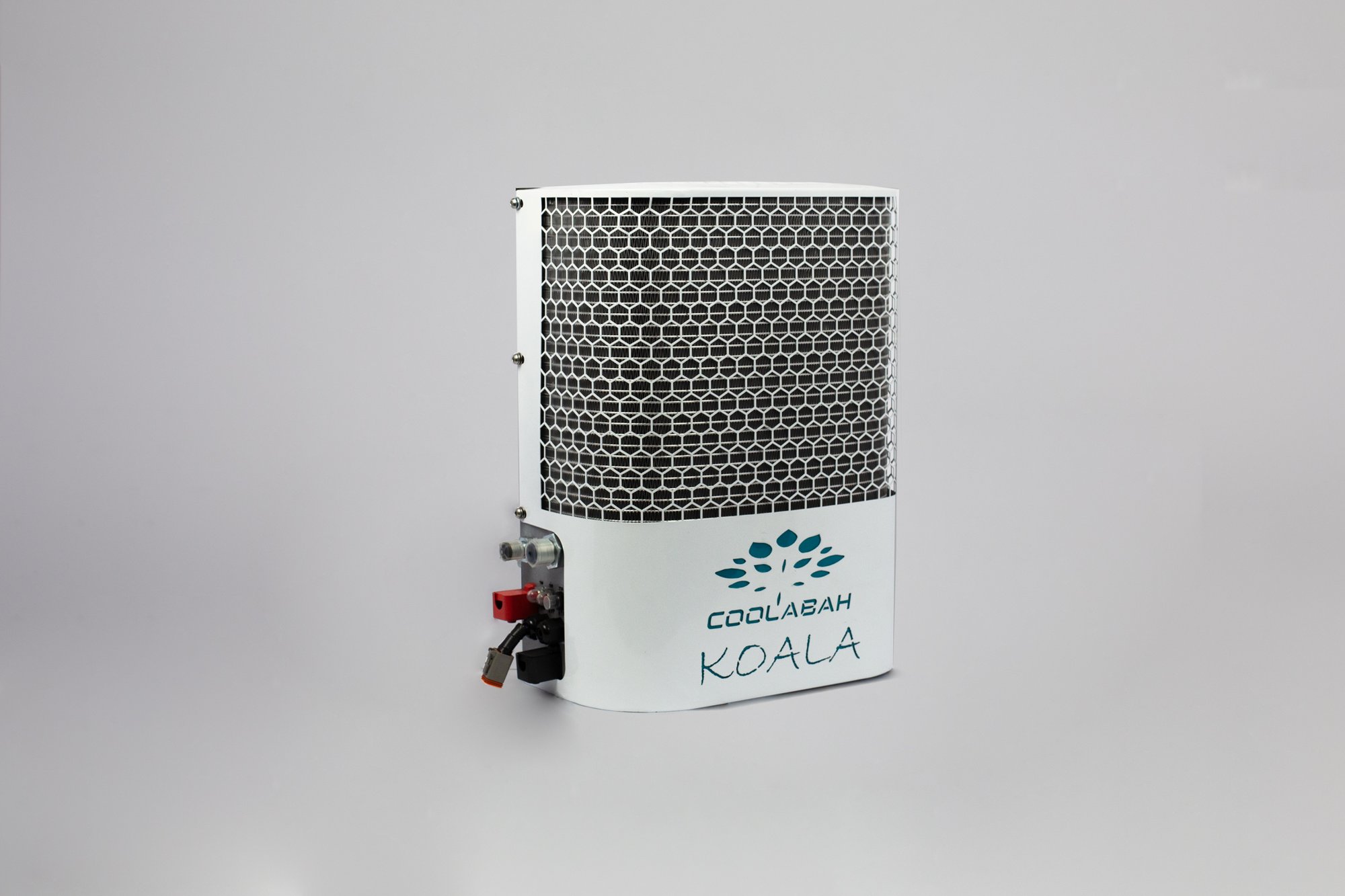

The Koala redefines rear-wall mounted A/C units with its slick powder-coated steel shell that can be painted to match the truck colour. The Australian made Koala offers a powerful alternative to the Joey for trucks with limited space or airflow under the cab.

  • Rear Wall installation
  • Provides both cooling and heating functions
  • Made with powder-coated zinc-plated steel
  • Offers 2.4KW of cooling and 500W of heating power
THE KOALA

TECHNICAL SPECIFICATIONS

Model
Koala

Total unit weight

22kg

Unit dimension (L x W x H)

L: 380mm W: 360mm H: 200mm

Outdoor unit noise level

37dB

Indoor unit noise level

39dB

Outdoor unit waterproof level

IP65

Refrigerant

134A

Temperature range

-10°C to 50°C

Input power of heating

500W

Heating capacity

500W

Max. rated input current

50A

Rated cooling power

9,000 Btu/h

Rated cooling capacity

2.4KW

Mode

Cooling/Fan/Heating

Inverter / Non-inverter

Inverter/Brushless

Rated input voltage

12/24V

Note：All data are based on Coolabah standard test procedures. Actual performance may vary according to local conditions
